Pindle Drives


The RWA and ventilation electrically operated spindle drives are intended for the electromotive opening and closing of bottom, top and side hung casements, skylights and light domes.
They can be used for the natural smoke and heat extraction ventilation and the smoke dissipation, as well as for ventilation.

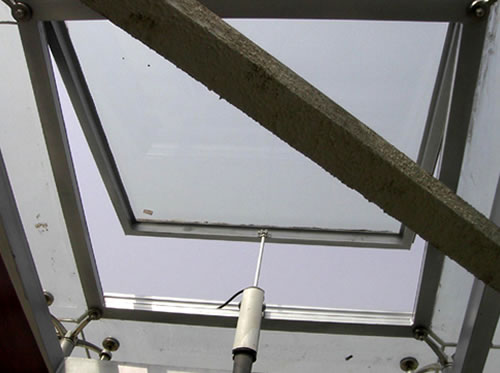

Spindle skylight opener as solo or synchronous solution for heavy casements

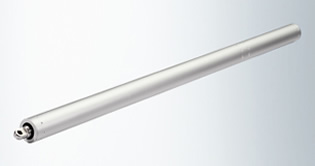

The RWA spindle drive is intended for the electromotive opening and closing of bottom, top and side hung casements and skylights. The robust, corrosion-resistant design, integrated end-position damping, aluminium housing and the silicone connecting cable characterise this high-quality electrically operated spindle drive.


  Product features
  • Voltage: 24V
  • Current: 1A, 1.5A, 2A
  • Tension: 600Nm, 800Nm, 1000Nm, 1200Nm
  • Opening width: 180mm, 350mm, 500mm, 550mm, 750mm
  • Speed: 10mm/s
  • Protection degree: IP65
  • Type of window: top hung, side hung, skylight
  •
