Homepage->Manual Roller Blind With Cassette



Manual Roller Shade with Cassette



Roller blind with cassette

Technical Description
  • White plastic roller blind mechanism with chain. It has an integrated metal clutch spring mechanism to lock the position and prevent unwanted roll down of the roller without the use of the chain. White metal brackets with the option to install on walls or ceilings.
  • Aluminium roller tube has 38mm with adhesive tape to secure the fabric.
  • The bottom rail, is used as counterweight to keep the fabric stretched. Coating white aluminium tube, with a special groove for insertion of the dowel rod.
  • White plastic chain ball, or optionally chain ball,and you can choice stainless steel chain ball.
  • Curve Cassette design is very popular, this will use for decorate and aviod the light coming in.Easy to install and adjust.
waterproof roller blinds ,used the same technical parts, only different in fabric, water proof fabric, waterproof roller blinds mainly used for bathroom, toilet ,kithen or any humidity places

With quality components for the operation system of the roller shade we offer , it is easy to position the shade at the desired point on the window.

Roller Blind Fabric
Roller blinds come in four main styles of fabrics:
  • Sunscreen fabrics
  • Block out fabrics
  • Translucent fabrics
  • Printing fabric
We can provide high quality fabric which passed SGS inspectoin, Flame-Resistance Ratings: NFPA701 (USA), BS5867-2(UK)

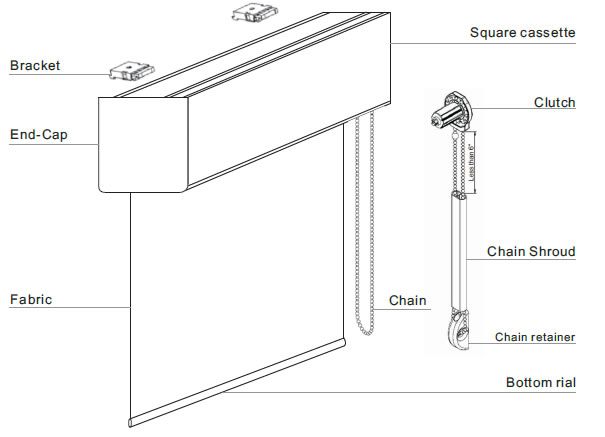

System Drawing


Misdar offers cassette roller blinds for both chain and crank-driven mechanisms that ensure a smooth operation and locks the shade positively in any position, providing fingertip control.
Our zinc-plated, versatile universal mounting bracket allows for the roller shade to be ceiling, side, or wall mounted without the need for additional hardware. .
We offer the roller shade with fascia, cassette for hotel, office, flat.

Roller shade with cassette
